Logitech Zone Wireless Plus Headset
PACKAGE CONTENTS
Wireless headset
USB-A receiver
USB-C adapter Charging cable
Travel Bag
User documentation
WARRANTY INFORMATION
DIMENSIONS
Headset
Height: 6.88 in (174.7 mm)
Width: 6.96 in (176.7 mm)
Depth: 2.78 in (70.7 mm)
Weight: 6.38 oz (.1808 Kg)
Ear pad dimensions
Height: 2.78 in (70.7 mm)
Width: 2.78 in (70.7 mm)
Depth: 0.65 in (16.4 mm)

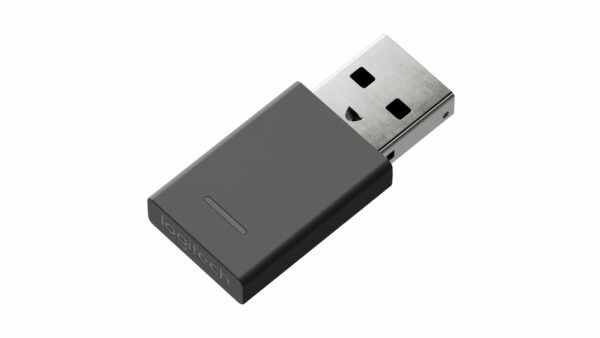

Zone Wireless Receiver
Height: 0.85 in (21.5 mm)
Width: 0.54 in (13.6 mm)
Depth: 0.24 in (6 mm)
Zone Wireless USB-C adapter
Height: 1.0 in (25.1 mm)
Width: 0.65 in (16.5 mm)
Depth: 0.21 in (5.3 mm)
* The adaptor is only compatible with Logitech Zone Wireless Bluetooth Receiver.
Zone Wireless Plus Receiver
Height: 1.40 in (35.5 mm)
Width: 0.64 in (16.2 mm)
Depth: 0.21 in (5.3 mm)
SYSTEM REQUIREMENTS
Compatibility
Works with common calling applications across almost all platforms and operating systems.
TECHNICAL SPECIFICATIONS
Microphone
Type: Omni-directional dual MEMS mic array
Frequency response: 85 ~ 20KHz @-3dB (ECM mic freq resp)
Speakers
Frequency response (music mode): 30 ~ 13KHz @ -10dB
Frequency response (talk mode): 100 ~ 8KHz per TIA920
Audio compliance: Compliant to EN 50332
Battery
Built-in battery (Lithium ion)
Battery life (talk time): 14 hrs (ANC on), 15 hrs (ANC off)
Battery life (listening time): 14 hrs (ANC on), 16 hrs (ANC off)
Wireless
Bluetooth version: 5.0
Wireless range: Up to 30m /100 ft (open field line of sight)
