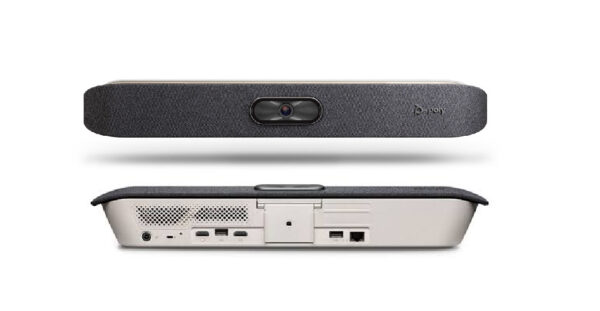

Poly Studio X30/TC8 Bundle

$2,680.14

10 in stock

SKU: 2200-86260-001 Category: Tag:
  • PACKAGE INCLUDES:
    • Poly Studio X30
    • Cable bundle
    • Monitor clamp
    • Privacy cover
  • VIDEO STANDARDS AND PROTOCOLS
  • VIDEO INPUT
  • VIDEO OUT
    • 1x HDMI
    • Touch display compatible
  • PEOPLE VIDEO RESOLUTION
    • 4K, 30 fps (TX and RX) from 2048 Kbps
    • 1080p, 60 fps from 1740 Kbps
    • 1080p, 30 fps from 1024 Kbps
    • 720p, 60 fps from 832 Kbps
    • 720p, 30 fps from 512 Kbps
  • CONTENT VIDEO RESOLUTION
    • Input
      • UHD (3840 x 2160)
      • HD (1920 x 1080p)
      • WSXGA+ (1680 x 1050)
      • UXGA (1600 x 1200)
      • SXGA (1280 x 1024)
      • WXGA (1280 x 768)
      • HD (1280 x 720p)
      • XGA (1024 x 768)
      • SVGA (800 x 600
    • Output
      • UHD (3840 x 2160)
      • WUXGA (1920 x 1200)
      • HD (1920 x 1080)
      • WSXGA+ (1680 x 1050)
      • SXGA+ (1400 x 1050)
      • SXGA (1280 x 1024)
      • HD (1280 x 720)
      • XGA (1024 x 768)
    • Content frame rate
      • 5–60 fps (up to 4K resolution at 15 fps in call)
  • CONTENT SHARING
    • Poly Content app support
    • Apple Airplay
    • Miracast
    • HDMI input
    • Digital Whiteboarding
  • CAMERA
    • 5x digital zoom
    • 120° FOV
    • UHD 2160p (4K) capture resolution
    • Electronic pan/tilt/zoom
    • Automatic group framing
    • Automatic speaker tracking
  • AUDIO INPUT
    • Four MEMS microphones
    • Microphone pickup range 15ft
  • AUDIO OUTPUT
    • Single Speaker
    • Microphone pickup range 15ft
  • OTHER INTERFACES
    • 1x USB-A (3.0)
    • 1x USB-C
    • Bluetooth 5.0
    • WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
  • AUDIO STANDARDS AND PROTOCOLS
    • 22 kHz bandwidth with Polycom Siren 22 technology
    • 20 kHz bandwidth with G.719 (M- Mode)and Polycom Siren 22 technology
    • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
    • 7 kHz bandwidth with G.722, G.722.1
    • 3.4 kHz bandwidth with G.711, G.728, G.729A
  • NETWORK
    • IPv4
    • 1x 10/100/1G Ethernet
    • Auto-MDIX
    • H.323 and/or SIP up to 6 Mbps in Poly App video mode
    • Lost Packet Recovery (LPR) technology
    • Dynamic bandwidth allocation
    • Reconfigurable MTU size
    • Web proxy support—basic, digest, and NTLM
    • Simple Certificate Enrollment Protocol (SCEP)
    • IPv6
  • SECURITY
    • Media Encryption (H.323, SIP): AES-128, AES-256
    • H.235.6 support
    • Authenticated access to admin menus, web interface, and APIs
    • Local account password policy configuration
    • Security profiles
    • Local account and login port lockout
    • Secure defaults
    • Remote logging with support for TLS
    • Active directory external authentication
  • OPTIONS
    • VESA mount kit
    • Stand
    • Poly TC8
    • Poly Bluetooth remote control
    • Poly Trio
    • Inverted mount kit
    • TAA, JITC and no radio versions available
  • INTEROPERABILITY
    • Zoom Certified
    • Microsoft Teams Certified
    • All cloud service providers through Poly Video App Mode
    • USB device mode
    • Support for native 3rd party applications includes Zoom, Microsoft Teams, 8×8, GoToRoom, RingCentral and StarLeaf
  • ELECTRICAL
    • Auto sensing power supply
    • Typical operating voltage/power
      • 37 VA @ 120 V @ 60 Hz
      • 37 VA @ 230 V @ 50/60 Hz
    • Typical BTU/h: 65
  • ENVIRONMENTAL SPECIFICATION
    • Operating temperature: 0 to 40 °C
    • Operating humidity (non-condensing): 15 to 80%
    • Non-operating temperature: -40 to 70 °C
    • Non-operating humidity (non-condensing): 5 to 95%
    • Maximum altitude: 16,000 ft
  • PHYSICAL CHARACTERISTICS
    • 17.39 W x 2.46 H x 2.42 D (inches) 441.8 W x 62.5 H x 61.6 D (mm)
    • 1.6 lbs/.73 kg
  • WARRANTY
