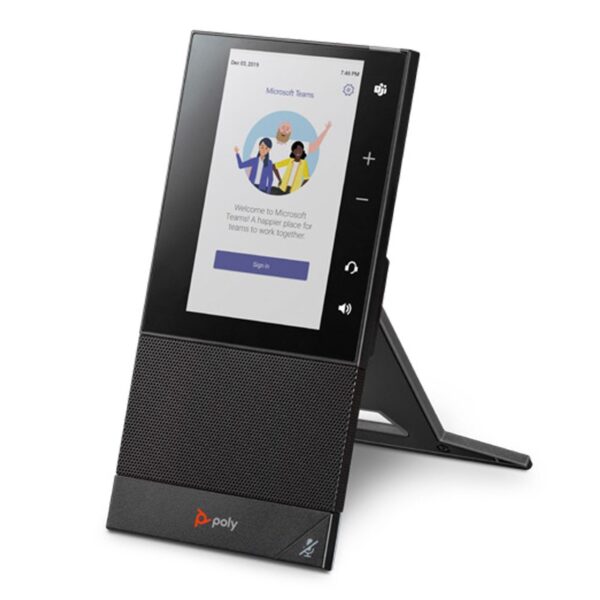

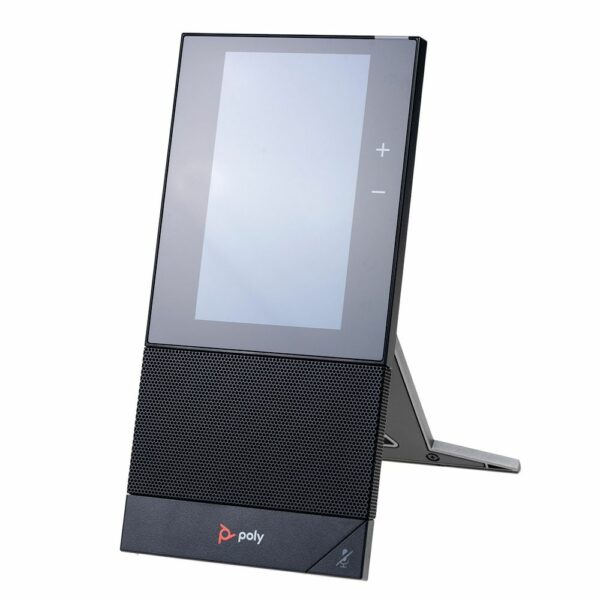

Poly CCX500 Business Media Phone

$510.68$535.05

Clear
SKU: N/A Category: Tag:
  • USER INTERFACE FEATURES
    • Gesture-based, multitouch-capable touchscreen
    • 5-inch color LCD (720 x 1280 pixel)
    • 9:16 aspect ratio Screensaver
    • On-screen virtual keyboard
    • Voicemail support
    • Adjustable base height
    • 1 USB type-A port (2.0 compliant) for media and storage applications
    • 1 USB Type-C port (2.0 compliant) for media and storage applications
    • Integrated Bluetooth 4.2
    • Unicode UTF-8 character support
    • Adjustable font size selection (regular, medium, large)
    • Normal and dark mode
    • Multilingual user interface* including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
    • *Planned localization
  • AUDIO FEATURES
    • Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
    • Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression
    • TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
    • Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
    • Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
    • Individual volume settings with visual feedback for each audio path
    • Voice activity detection
    • Comfort noise generation
    • DTMF tone generation (RFC 2833 and in-band)
    • Low delay audio packet transmission
    • Adaptive jitter buffers
    • Packet loss concealment
    • OPUS support
  • HEADSET AND HANDSET COMPATIBILITY
    • Dedicated RJ-9 headset port
    • Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
    • Compliant with ADA Section 508 Subpart B 1194.23 (all)
    • Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
    • Compatible with commercially available TTY adapter equipment
    • USB headset support
    • Bluetooth headset support
  • NETWORK AND PROVISIONING
    • SIP protocol support
    • SDP
    • IETF SIP (RFC 3261 and companion RFCs)
    • Two-port gigabit Ethernet switch
    • 10/100/1000Base-TX across LAN and PC ports
    • Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
    • Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
    • Manual or dynamic host configuration protocol (DHCP) network setup
    • Time and date synchronization using SNTP
    • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
    • Provisioning and call server redundancy supported *
    • QoS Support—IEEE 802.1p/Q tagging
    • (VLAN), Layer 3 TOS, and DHCP
    • VLAN—CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery – Network address translation support for static configuration and “keep-alive”
    • SIP signaling
    • RTCP and RTP support
    • Event logging
    • Syslog
    • Hardware diagnostics
    • Status and statistics reporting
    • IPv4 and IPv6
    • TCP
    • UDP
    • DNS-SRV
    • * Planned localization
  • SECURITY
    • 802.1X authentication and EAPOL media encryption via SRTP
    • Transport layer security (TLS)
    • Encrypted configuration files
    • Digest authentication
    • Password login
    • Support for URL syntax with password for boot server address
    • HTTPS secure provisioning
    • Support for signed software executables
  • POWER
    • Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 0) 13W (Max)
    • External universal AC/DC adapter (optional) 48VDC @ 0.52A (25W)
    • ENERGY STAR® rated
  • REGULATORY APPROVALS **
    • Argentina ENACOM
    • Australia RCM
    • Brazil ANATEL
    • Canada ICES & NRTLC
    • China CCC & SRRC
    • EEA CE Mark
    • Eurasian Customs Union EAC
    • India WPC
    • Indonesia SDPPI
    • Israel MOC
    • Japan MIC & VCCI
    • Malaysia SIRIM
    • Mexico IFETEL & NYCE
    • NZ Telepermit
    • Saudi Arabia CITC
    • Singapore IMDA
    • South Africa ICASA
    • South Korea KC
    • Taiwan NCC
    • UAE TRA
    • USA FCC & NRTL
    • ** Planned compliance
  • RADIO
    • USA – FCC Part 15.247
    • Canada – RSS 247 Issue 2
    • EU – ETSI EN 300 328
    • Japan – Article 2.1 Item 19-2
    • Australia – AS/NZ4268
  • SAFETY
    • UL 62368-1
    • CAN/CSA C22.2 No. 62368-1-14
    • EN 62368-1
    • IEC 60950-1 & IEC 62368-1
    • AS/NZS 62368-1
  • EMC
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55032 Class B
    • EN 55024
    • EN 301 489-1 & EN 301 489-17
    • CISPR32 Class B
    • VCCI Class B
  • OPERATING CONDITIONS
    • Temperature: 0 to 40°C (+32 to 104°F)
    • Relative humidity: 5% to 95%, noncondensing
  • STORAGE TEMPERATURE
  • CCX 500 BUSINESS MEDIA PHONE COMES WITH
    • Console
    • Handset with handset cord (handset model only)
    • Network (LAN) cable—CAT-5E
    • Desk stand
    • Setup sheet
  • SIZE
    • With handset: 17.8cm x 21.6cm x 5.2cm WxHxD (7.0in x 8.5in x 2.0in WxHxD)
    • Without handset: 10.5cm x 21.6cm x 5.2cm WxHxD (4.1in x 8.5in x 2.0in WxHxD)
  • PART NUMBER
    • 2200-49720-025 CCX 500 Business Media Phone. Open SIP. PoE. Ships without power supply.
    • 2200-49710-025 CCX 500 Business Media Phone without handset. Open SIP. PoE. Ships without power supply.
    • 2200-49720-019 CCX 500 Business Media Phone. Microsoft Teams/SFB. PoE. Ships without power supply.
    • 2200-49710-019 CCX 500 Business Media Phone without handset. Microsoft Teams/ SFB. PoE. Ships without power supply.
    • 2200-49713-001 CCX 500 wall mount Kit
  • WEIGHT
    • CCX 500 with handset carton weight: 1.28 kg (2.82 lbs)
    • CCX 500 without handset carton weight: 0.73kg (1.61 lbs)
  • WARRANTY
Version

Open SIP without Handset, Microsoft Teams without Handset, Open SIP with Handset, Microsoft Teams with Handset
