Logitech Scribe Whiteboard Camera
WHITEBOARD CAMERA FOR VIDEO CONFERENCING ROOMS
Designed for whiteboard sharing in the modern workplace, Logitech
Scribe broadcasts content on dry erase boards into video meetings with
outstanding clarity. Now, even remote participants can have the best
seat at the table.

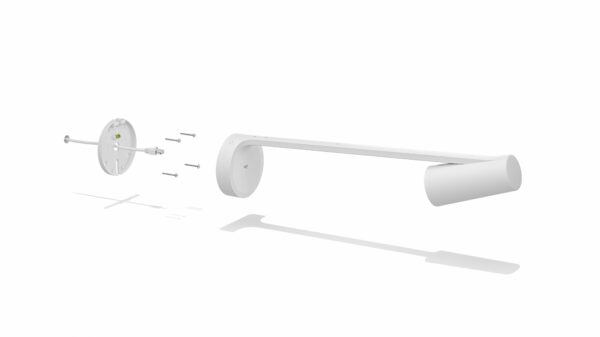

With a clean wall-mounted design and thoughtful cable management,
Scribe installs elegantly and out of the way of meeting collaboration.
Together with the whiteboard content camera, Scribe includes a
wireless share button, mounting components, power supply, and
category cables for deployment at scale.
Logitech Scribe Whiteboard Camera

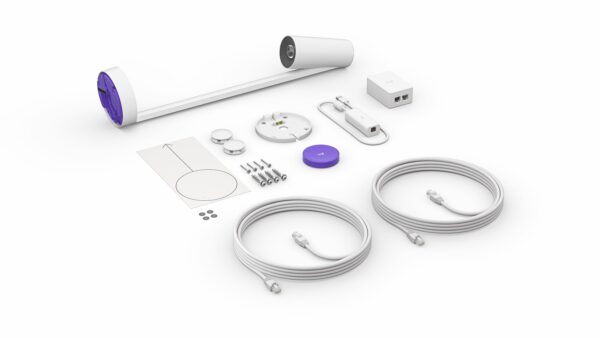

PACKAGE CONTENTS
Camera
Share Button
Dongle Transceiver
100-240v Power Supply with International Adaptor Set
5.0 m Cat5e Cables x 2
Camera Installation Kit
Documentation
WARRANTY INFORMATION
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year extended warranty available at the time of hardware purchase.
Contact your reseller for availability.
Extended: Additional one-year extended warranty available at the time of hardware purchase.
Contact your reseller for availability.
TECHNICAL SPECIFICATIONS
Certifications & Compatibility
Integrates with Microsoft Teams Rooms on Windows® and Zoom Rooms (Windows or macOS) as a whiteboard content camera.
See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
Compatible with virtually any video conferencing application as a USB-connected camera.
Camera
Output Resolution: 1080p at 15 fps
Built-In AI: Broadcasts AI-enhanced image stream into video meetings
Share Button
Power: 2 x CR2032 battery
Adhesive-backed mounting
Share button support may vary by video conferencing service provider.
See www.logitech.com/support/scribe-compatibility for latest information.
Interfaces
Camera: Category Cable Port
Share Button: Bluetooth® Low Energy
Power & Cables
Power supply: 100-240V auto-switching power supply with international adaptor set
Cable Type: Cat5e SF/UTP AWG26 or higher
Environmental
Operating Temperature: 0-40°C
Storage Temperature: -40-70°C
Humidity: 10-95%
Security
Full Disk Encryption: AES-128
Device Management
Logitech Sync
DIMENSIONS
Camera
Height: 149 mm
Width: 119 mm
Depth: 573 mm
Weight: 1.1 kg
Share Button
Height: 12.7 mm
Diameter: 71.8 mm
Weight: 108 g
Power Injector
Height: 91 mm
Width: 60.2 mm
Depth: 36.3 mm
Dongle Transceiver
Height: 22.5 mm
Width: 31 mm
Depth: 83.7 mm
Cable length: 500 mm
Included Cabling (x2)
Length: 5 m
SYSTEM REQUIREMENTS
Whiteboard
Maximum Whiteboard Dimensions
Height: 1.2 m
Width: 2 m
Customer-Supplied Cabling
Cable Type: Cat5e or higher [up to 35 meters in total length]
